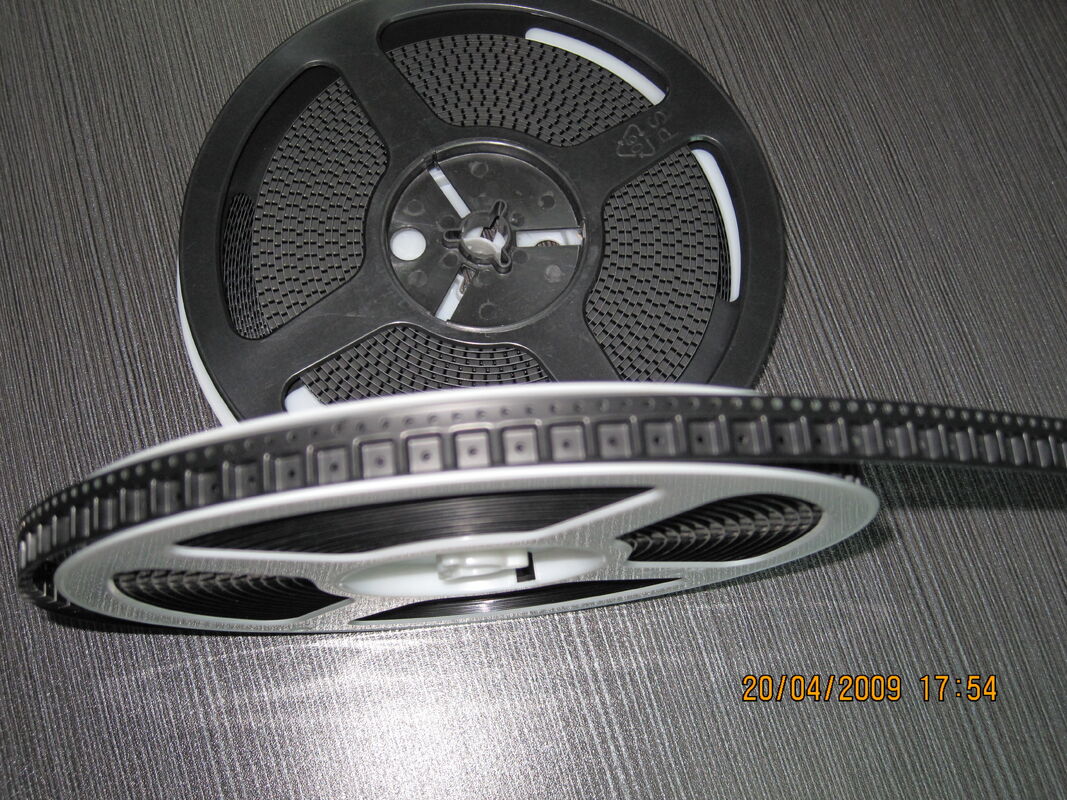

7-Inch 16mm Plastic Reel for SMD Carrier Tape Packaging

Product Description

The 7-inch 16mm plastic reel is designed for winding 16mm carrier tape used in SMD electronic component packaging. With a compact reel diameter and a dedicated width configuration, it provides an organized way to store, transport and feed carrier tape throughout the electronics manufacturing process.

A reel is more than a simple storage spool. During winding, the carrier tape needs to remain properly aligned across the reel width so that the tape can be unwound smoothly during subsequent operations. The reel structure therefore needs to work together with the carrier tape, cover tape and the equipment used for tape feeding.

The 7-inch format is particularly suitable for applications where a compact reel size is preferred. It can be used for component packaging, sample preparation, production runs, warehouse handling and shipment of tape-and-reel packaged electronic components.

The 16mm width configuration is suitable for matching 16mm carrier tape. Reel dimensions such as hub size, flange spacing and winding capacity should be confirmed according to the actual carrier tape specification and equipment requirements.

Main Product Features

Product Specification

The reel and carrier tape should be treated as one packaging combination rather than two independent products.

For a 16mm carrier tape application, the reel needs to provide sufficient lateral support while allowing the tape to wind evenly. The final reel configuration can therefore depend on:

• Carrier tape width

• Carrier tape thickness

• Pocket depth

• Pocket pitch

• Required tape length

• Winding diameter

• Hub diameter

• Packaging equipment

• Component type

This is particularly important when the tape contains formed pockets, because the accumulated winding thickness changes as more tape is loaded onto the reel.

Tape-and-Reel Packaging System

The product can be used as part of a complete electronic component packaging system:

SMD Component → 16mm Carrier Tape → Cover Tape → 7-Inch Reel → SMT Feeder

This configuration allows components to remain organized from packaging and transportation through to automated assembly.

Winding and Handling

During reel loading, consistent winding is important for maintaining the shape and alignment of the finished roll.

A suitable reel should help provide:

• Controlled tape alignment

• Stable winding

• Reduced lateral movement

• Easier reel handling

• Organized transportation

• Smooth tape unwinding

The actual winding capacity should not be defined only by the reel diameter. Carrier tape thickness, pocket geometry and winding configuration also affect how much tape can be accommodated on one reel.
