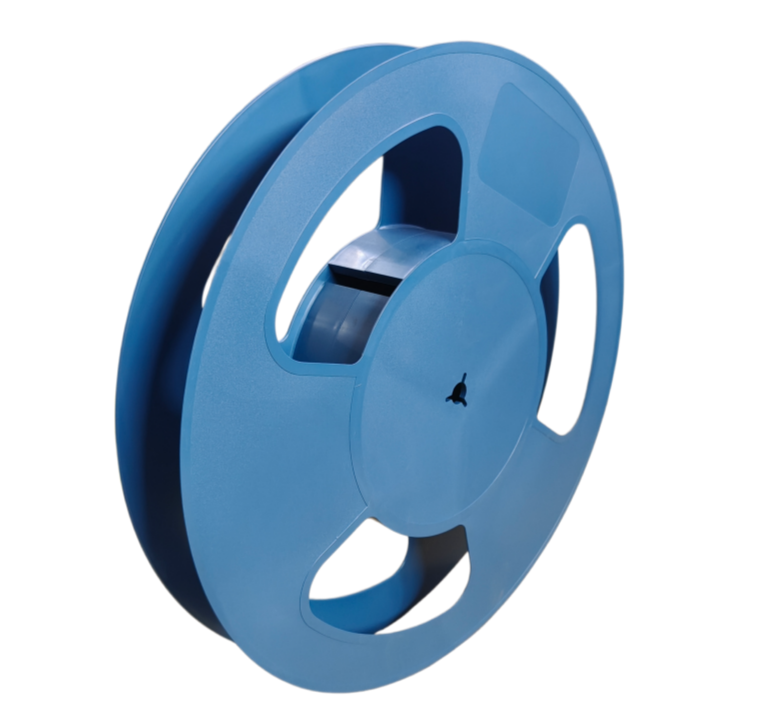

Carrier Tape Reels Available materials: PS, PC, ABS, PLA. Four product series are optional: Standard, Precision, High Temperature and Eco-friendly Series.

Name: Carrier Tape Reels Available materials: PS, PC, ABS, PLA. Four product series are optional: Standard, Precision, High Temperature and Eco-friendly Series.
Brand: SHENZHEN DELIXIN CO.,LTD
SKU: 15”88mm
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ACE DELIXIN

Certification: ROHS,SGS

Model Number: 15”88mm

Payment & Shipping Terms

Minimum Order Quantity: 200pcs

Price: Discussible

Packaging Details: 110pcs/CTN

Delivery Time: 5-8days

Payment Terms: T/T, Western Union

Supply Ability: 10000000pcs/Morth

Get Best Price

Product Details

Product Description

Highlight:

Material:	PS	Color:	Blue / Black
Size:	15”88mm	Use:	SMD Resistor Packing
Plastic Modling:	Injection	Cover Tape:	Can Provide

Material:	PS
Color:	Blue / Black
Size:	15”88mm
Use:	SMD Resistor Packing
Plastic Modling:	Injection
Cover Tape:	Can Provide

Carrier Tape Reels Available materials: PS, PC, ABS, PLA. Four product series are optional: Standard, Precision, High Temperature and Eco-friendly Series.

15-inch large-capacity carrier tape reels can load up to 20,000 components, perfectly suitable for mass production.

Carrier tape acts as the core carrier within the automatic packaging system for electronic components. Custom-designed for high-speed SMT placement machines, it delivers precise and stable component feeding solutions. Manufactured from high-precision engineering plastics, the tape is arranged with equally spaced pockets on its surface to hold various types of electronic components.

When matched with cover tape, carrier tape forms fully enclosed packaging. It reliably protects electronic components from static electricity, moisture, dust and mechanical damage throughout transportation, storage and assembly procedures. Standard dimensions and accurately fabricated sprocket holes enable seamless compatibility with automated equipment, significantly lifting overall production efficiency.

We supply carrier tapes in multiple reel sizes: 7-inch, 13-inch and 15-inch, catering to diverse component loading capacity demands. They are extensively used in the automated production of integrated circuits, semiconductor devices, chip resistors, chip capacitors and other electronic components.

arameter	Standard Series	Precision Series	High-Temperature Series	Eco-Friendly Series
Outer Diameter	7"/13"/15"	7"/13"/15"	7"/13"/15"	7"/13"/15"
Carrier Tape Width	8-88mm	8-64mm	12-104mm	8-88mm
Pocket Depth	0.4-35mm	0.3-25mm	0.5-40mm	0.4-35mm
Sprocket Hole Accuracy	±3μm	±1.5μm	±2.5μm	±3μm
Dimensional Accuracy	±0.05mm	±0.02mm	±0.04mm	±0.05mm
Anti-Static Performance	10⁶-10⁹Ω/sq	10³-10⁶Ω/sq	10⁴-10⁷Ω/sq	10⁶-10⁹Ω/sq
Operating Temperature	-20℃ to 80℃	-40℃ to 100℃	-40℃ to 150℃	-20℃ to 80℃
Main Material	PS/ABS	PC	High-Temp PC	PLA Biopolymer
Max Capacity	5,000-20,000 pcs	5,000-15,000 pcs	5,000-18,000 pcs	5,000-20,000 pcs

Carrier Tape Reels Available materials: PS, PC, ABS, PLA. Four product series are optional: Standard, Precision, High Temperature and Eco-friendly Series.

Tags:

Manufactured with precision injection molding, it supports customization on size, color, logo and material. It is widely used for packaging LEDs, resistors, ICs and other electronic components.

Get Best Price

Standard 7-inch reel for 8mm component carrier tape, lightweight, impact-resistant and compatible with automatic SMT equipment.

Get Best Price

Available in blue and black. 7-inch reel for automated SMD component packaging, compatible with multiple SMT placement machines.

Get Best Price

15-inch reel compatible with 8mm–88mm width. Adopts eco-friendly injection molding, ideal for LED, resistor, capacitor and electronic component packaging, SGS certified.

Get Best Price

5050 LED Carrier Tape Plastic Reel, 15-inch SMT Packaging Reel, Stable, Wear-resistant and Crack-proof
