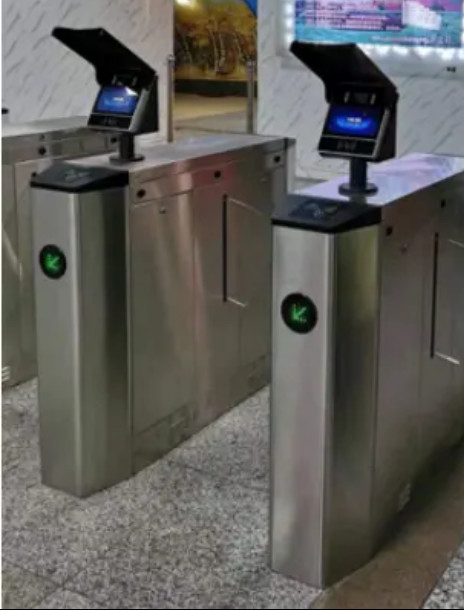

Esd Entrance Security Gates, Speed Gate And Turnstiles To Complement Any Access Control System For Esd Protected Area's

Descriptions:

The turnstile provides a basic tripod to control access smoothly and effectively by basic operation, and also prevent illegal in and out. The machine is well in design, rustproof, durable and can resist external destroy.
1. Standard Vertical tripod turnstile

1.1 Technology speciation:
Framework: 304 Grade Stainless Steel
Specification: 420*330*980mm
Weight: 45kg
Arms length: 510mm
Logic voltage: 24v
1.2. Function:
1.2.1.Single/double walkway---controlled in one direction or both
1.2.2.A valid lock action can allow one passage at one time
Normally open---the machine will unlock when a valid signal is received
1.2.3.It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be adjusted via parameter change.

1.2.4. Rotation indication: NO.
1.3. Emergency configuration:
The tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency
1.4. Interface: one standard port-RS485 or Switch signal.
1.5. Can choose to add Control panel with count and LED digital function.

Stand tripod way: Use hand to press tripod, then return to origin place.
1.6. Traffic-light:
A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing
1.7. Transit speed: 20——30 persons per minute
1.8. Work environment:
Indoor/outdoor
Temperature: --40 below degree to 70 degree
1.9. Applications:
Station/exhibition/airport/subway/government/market and so on

2. Automatic Vertical tripod turnstile

2.1 Technology speciation:
Framework: 304 Grade Stainless Steel
Specification: 420*330*980mm
Weight: 45kg
Arms length: 510mm
Logic voltage: 24v
2.2. Function:
2.2.1.Single/double walkway---controlled in one direction or both
2.2.2.A valid lock action can allow one passage at one time
Normally open---the machine will unlock when a valid signal is received
2.2.3.It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be adjusted via parameter change.

2.2.4 Rotation indication: can rotate 15 degree angle to indicate pass.
2.3. Emergency configuration:
The tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency
2.4. Interface: one standard port-RS485 or Switch signal.
2.5. Can choose to add Control panel with count and LED digital function.

Stand tripod way: Automatic
2.6. Traffic-light:
A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing
2.7. Transit speed: 20——30 persons per minute
2.8. Work environment:
Indoor/outdoor
Temperature: --40 below degree to 70 degree
2.9. Applications:
Station/exhibition/airport/subway/government/market and so on

II. iDS-610 – ESD Wrist Strap and Shoe Tester

• Able to test/verify from 500kOhm to 1000MOhm
• Accuracy/Tolerance ±10%
• Simultaneous testing of Wrist strap, Left Foot and Right Foot
• Testing Voltage 12V
• Enclosure: Stainless steel casing
• Testing Point ~ Vandal Resistance Steel Button
• Water Isolated/Proof Footplate (Supplied together with the system)

• Adaptor 15VDC (Supplied). Input 220~250Vac, 60Hz
• Other features of ESD tester:
  * 2x20 LCD Panel to facilitate Verification/Calibration
  * Digital Verification/Calibration Method
  * Upgradable for DataLogging and other control use
