Name: Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader
Brand: SHENZHEN DELIXIN CO.,LTD
SKU: ACE1000.300.1000
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ACE DELIXIN

Certification: CE

Model Number: ACE1000.300.1000

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: Negotiable

Packaging Details: Firstly use carton box to pack, then use export wood box to pack

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 3000 sets per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Stainless steel Pedestrian Barrier Gate, RFID Reader flap barrier gate, Electric Pedestrian flap barrier turnstile


Material:	Stainless Steel	Size:	L1000W300H1000MM
Tester Display:	LCD	Control Mode:	Automatic
Power Comsumption:	Static Status: 20W; Dynamic Status: 60W	Temperature:	-10 ºC - 60 ºC
Humidity:	5%~90%	Noise:	<50DB
Lane Width:	500-1000mm	Usage Life:	More Than 600 Million Times

Material:	Stainless Steel
Size:	L1000W300H1000MM
Tester Display:	LCD
Control Mode:	Automatic
Power Comsumption:	Static Status: 20W; Dynamic Status: 60W
Temperature:	-10 ºC - 60 ºC
Humidity:	5%~90%
Noise:	<50DB
Lane Width:	500-1000mm
Usage Life:	More Than 600 Million Times

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader

Flap gate.

Features:

Designed reasonable and reliable movement, smooth running, long service life.
Wing to open very quickly, effectively prevent the tail, and improve the access speed.
After power-off, wing automatically open, forming a transparent channel.
Prompted with the direction of LED lights.
Adoption of a number of infrared sensors, to prevent illegal entry into the pedestrian access, to protect pedestrians safe and smooth through the channel.
Anti-recoil, a pedestrian entering the channel from the opposite direction, immediately report to the police.
Anti-tail, too many people to prevent a situation of non-permit.
With automatic reset function, namely to obtain permission lock after the set time There is no lock, wing gates automatic cancellation of this authority back to the initial state.
Waterproof, sunscreen, cold and high temperature.
Installation with personalized interface, compatible with IC, ID cards and other smart cards.
A unified, standard external electrical interface, read and write device with a variety of freely Articulated, easy system integration.
Can be extended to automatic identification systems, achieve access control, attendance, fees and other functions.
Be integrated with other types channels with the use of product.

Technical parameters:

Box materials: Stainless steel
Internal structure: Steel frame structure
Box Dimensions: See product diagram
Wide channel: See product diagram
Arm wing materials: Stainless steel, acrylic, etc.
Core voltage: DC24V.
Control signal: relay signal input.
Lighting tips: green movement, the alarm curfew.
Power indicator light job: DC12V±5%.
Passing speed: Normally open mode: 50 passengers / min.

Normally closed mode: 30 passengers / min.

Gate opening, clearance time: 0.4 seconds
Temperature: -30 degrees~60 degrees

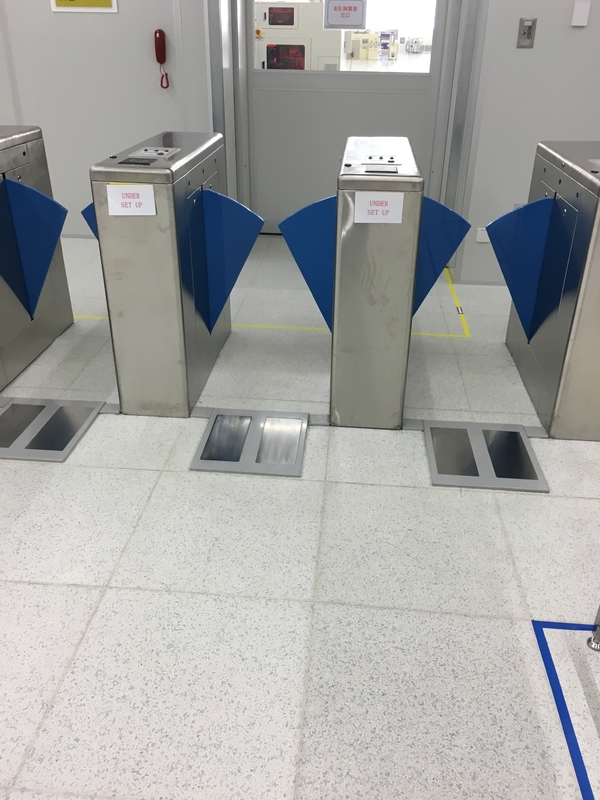

I. Flapgate

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 0

II. iDS-610 – ESD Wrist Strap and Shoe Tester

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 1

Able to test/verify from 500kOhm to 1000MOhm
Accuracy/Tolerance ±10%
Simultaneous testing of Wrist strap, Left Foot and Right Foot
Testing Voltage 12V
Enclosure: Stainless steel casing
Testing Point ~ Vandal Resistance Steel Button
Water Isolated/Proof Footplate (Supplied together with the system)

Adaptor 15VDC (Supplied). Input 220~250Vac, 60Hz
Other features of ESD tester:
* 2x20 LCD Panel to facilitate Verification/Calibration
* Digital Verification/Calibration Method
* Upgradable for DataLogging and other control use

III. ID or IC reader

1. Specification:

ID CARD

Frequency:13.56KHz
DIM:Length85.6mm × Width53.98mm × Thickness1.8mm
Material:Hard Shell = ABS；Cover Foil = PVC
Color:White , black, grey, blue, yellow

Power requirements: 5-16VDC at 100mA, A linear regulator is recommended

Interface: Weigand

Reader range: 5 - 10 cm

Operation temperature: -30 C to +60 C

operationg humidity: 5%-95% relative humidity non-condensing

Audio/Visual Indication: Green & Red and Buzzer signal output

Response Time: Less than 0.2 seconds

cable length: 250mm

Weight: 60g

2. Wiring :

Red: Power 5-16V

Black: Power ground

Green: Wiegand output D0

White: Wiegand output D1

Brown: Green LED control

Blue: Buzzer control

Yellow: Hold

IV. Data Logging System D-Stat 700

D-Stat 700 Wrist Strap/Foot wear Datalogging System

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 2

5. DS-Reader

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 3

6. Ds_Scheduler

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 4

7. D-Stat 700

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 5

8. Main Screen

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 6

9. Employee

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 7

10. Bar Chart

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 8

11. Report

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 9

12, Attendance

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 10

13. Fail Report

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 11

14. DS-Fail Reporting

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 12

15. Edit Action /Remarks

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 13

16. Data-Logging Network Topology With iDS-600

Portable Electric Pedestrian Barrier Gate With Controller / RFID Reader 14
