Highlight:
Color: |
Black Or Clear |
ESD Value: |
10E5 Or NO |
Size: |
Width 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm |
Material: |
PS/PC/PET |
Cover Tape: |
Can Provide |
Reel: |
Can Provide |
Carrier tape
8-104mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.
Color:black/transparen
There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.
We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.
Cover tape
Environment-friendly antistatic material,including self-adhesion type and heat-sealing type.Self-adhesion type with two colors:transparent and tawny,heat-sealing type with other two colors:transparent and semi-transparent(spay),following is the matching table of cover tape and carrier tape:
| Carrier tape (MM) |
8 |
12 |
16 |
24 |
32 |
44 |
56 |
72 |
88 |
| Cover Tape(MM) |
5.4 |
9.3 |
13.3 |
21.3 |
25.5 |
37.5 |
49.5 |
65.5 |
81.5 |

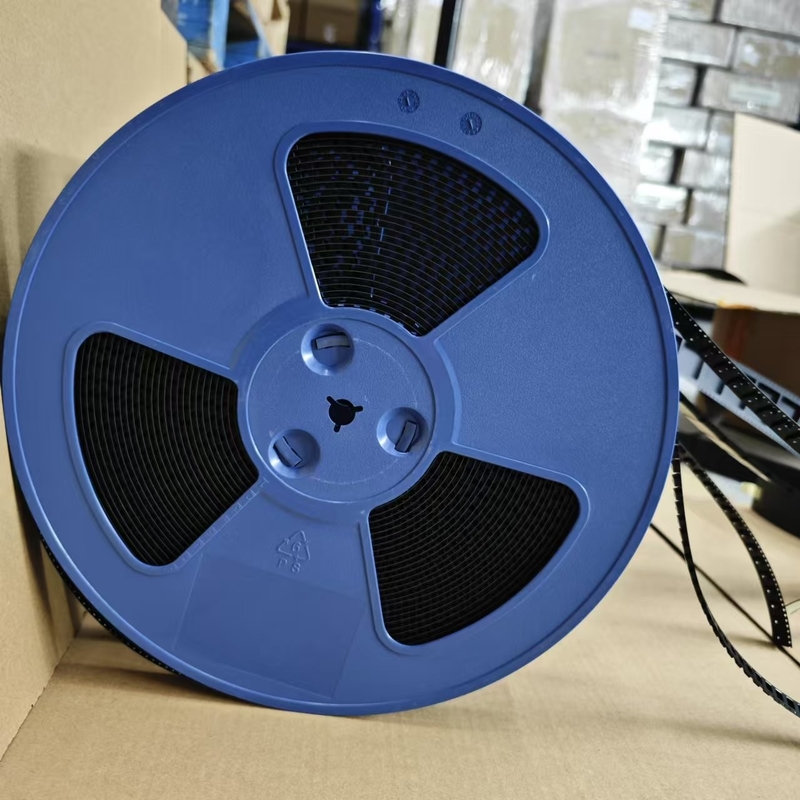

Plastic reel
Environment-friendly PS anti-static materials,blue /black/white
Size:the diameter of disk,178mm,330mm,380mm,the diameter of axis:60mm,100mm,150mm,180mm,Width:8mm-72mm,and can be mixed according to requirement.
About our factory
Jindongli Intellingent Technology (SZ) Co., Ltd is a high-tech enterprise integrated with scientific research and design, manufacturing and sales services, main products including SMD peripheral devices (such as: semi-automatic taping packaging machine, automatic
