Highlight:
High Accurate Embossed Carrier Tape
, Embossed Carrier Tape Lightweight
, Inductor embossed taping reel

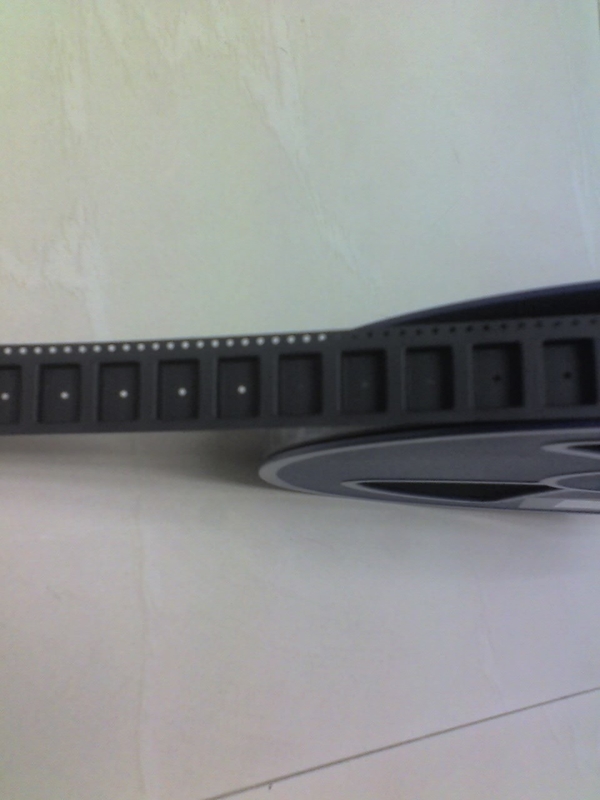

High Accurate Embossed Carrier Tape Reel Lightweight For Inductor / Connector
High Accurate Embossed Carrier Tape Lightweight For Inductor / Connector
Carrier tape comply to EIA-481 standard
Major style
1. Hole of carrier tape on the edge
1.1 Only have one line hole on the one side 1.2 Have one line hole on each side.
2. The center hole of carrier tape
2.1 With center hole 2.2 Without center hole
3. The raw material of carrier tape
3.1 PS sheet 3.2 PET sheet
3.1.1 Transparent PS sheet 3.2.1 Transparent PET sheet
3.1.2 Black antistatic PS sheet. 3.2.2 Black antistatic PET sheet.
3.1.3 Black conductive PS sheet
3.3 PC sheet 3.4 PP sheet
3.3.1 Transparent PC sheet 3.4.1 Transparent PP sheet
3.3.2 Black antistatic PC sheet 3.4.2 Black antistatic PP sheet.
3.3.3 Black conductive PC sheet 3.4.3 Black conductive PP sheet.
4. The antistatic property of carrier tape
4.1 Conductive carrier tape 4.2 Antistatic carrier tape 4.3 Non-antistatic carrier tape
5.The width of carrier tape
5.1 Can produce the below width carrier tape8mm12mm16mm24mm32mm44mm56mm72mm
6. The function of carrier tape
It is used be to pack IC,connector,quartz crystal,mini transformer,inductance,winding,switch,mobile-phone related accessories,diode,audion,resistance,capacitor and so on.
