Universal SMT Carrier Tape Embossed Carrier Tapes And Reels Eco Friendly

Name: Universal SMT Carrier Tape Embossed Carrier Tapes And Reels Eco Friendly
Brand: SHENZHEN DELIXIN CO.,LTD
SKU: 8mm-88mm
Price: 2.10 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: ACE DELIXIN

Certification: ROHS,SGS

Model Number: 8mm-88mm

Payment & Shipping Terms

Minimum Order Quantity: 2000 Meters

Price: USD(0.1-6)/meter

Packaging Details: carton box packing

Delivery Time: 5-8days

Payment Terms: T/T, D/A, D/P, L/C, Western Union

Supply Ability: 200000meters per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                tape on reel packaging, electronic component carrier tape


Color:	Black Or Clear	ESD Value:	10E5
Size:	,24mm,32mm,44mm,56mm,72mm	Material:	PS/PC
Cover Tape:	Can Provide	Reel:	Can Provide

Color:	Black Or Clear
ESD Value:	10E5
Size:	,24mm,32mm,44mm,56mm,72mm
Material:	PS/PC
Cover Tape:	Can Provide
Reel:	Can Provide

Universal SMT Carrier Tape Embossed Carrier Tapes And Reels Eco Friendly

Universal SMT Carrier Tape Embossed Carrier Tapes And Reels Eco Friendly

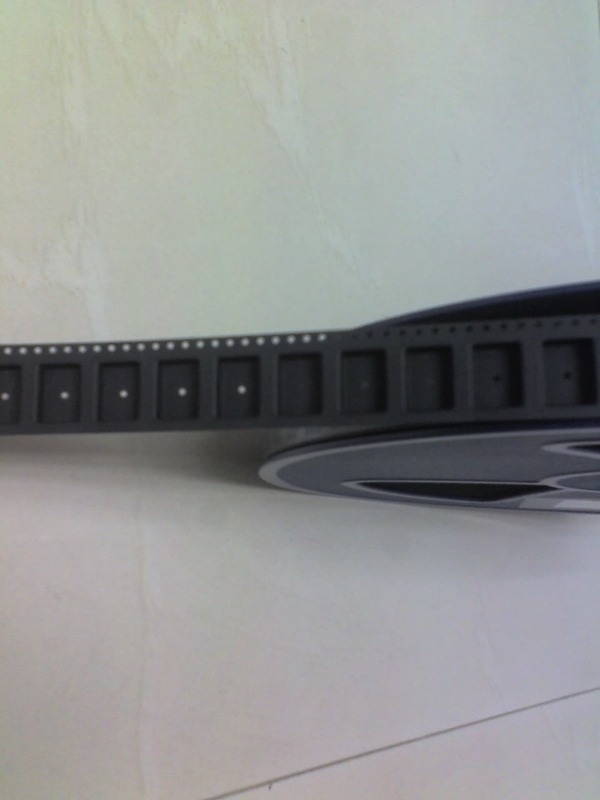

Carrier tape

8-104mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.

Color:black/transparent

There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.

We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.

SMD Embossed Carrier Tapes and Reels

Embossed carrier tapes for IC chips and other devices
Take-up Reel made from high impact injection molded materials
Reels available in normal, blue antistatic and conductive black
Width : 8, 12, 16, 24, 44, 56, 72 and 88 mm

Universal SMT Carrier Tape Embossed Carrier Tapes And Reels Eco Friendly 0

Universal SMT Carrier Tape Embossed Carrier Tapes And Reels Eco Friendly 1

Cover tape

Universal SMT Carrier Tape Embossed Carrier Tapes And Reels Eco Friendly 2

heating activity cover tape specification

PG-178SS Cover Tape can paste PS,PC,PET Carrier Tape. It is steady and excellent age property. It suits for SMT component package material.

STRUCTURE:

Base material:PET FILM

Adhesive agent:Anti-heating activity adhesive agent

Physical property:

Item	Specification data	Remark
Visual Transparent	Transparent Visible Light 10^9-11 DLX-178SS V.L.81%
Thickness	DLX-178SS 0.055mm±0.005mm	ASTM D-374
Surface resistance	Sealing side 10^9-11Ω/Square Base side 10^9-11Ω/Square T=23℃ RH=65%	ASTM D-257
Extensile strength	MD/ 22.4 TD/ 25.9	ASTM D-882
Extensibility %	MD/ 147 TD/ 120	ASTM D-882
POS	Refer to attachment 一	EIA-481
Aging test on POS	Refer to attachment二	EIA-481
Length	Standard length every roll 300+3M/500M+3M
Width	5.4 mm -97.5 mm
Guarantee time	One year after get tape

Plastic Wheel reel

Universal SMT Carrier Tape Embossed Carrier Tapes And Reels Eco Friendly 6

PLASTIC WHEEL SPEC FORM

Embossed carrier tape	Cover Tape	Each item size
(w)±0.15m/m	±0.15m/m	A	B±0.5	D±1.0	C±0.2	N±1.0	H±0.1	G±2.0
8	5.4	330	2.2	20.2	13	100	8.5	13.1
12	9.3	"	"	"	"	"	12.5	17.1
16	13.3	"	"	"	"	"	16.5	21.1
24	21.3	"	"	"	"	"	24.5	29.1
32	25.5	"	"	"	"	"	32.5	37.1
44	37.5	"	"	"	"	"	44.5	49.1
56	49.5	"	"	"	"	"	56.5	61.1
72	66.5	"	"	"	"	"	72.5	77.1
88	81.5	"	"	"	"	"	88.5	93.1

WHEEL SPEC LIST

STYLE	S．R．	STORAGE	SCRUBINGTIMES	COLOR
CONDUCTIVE	<10⁷ ohm/sp	1~2YEAR	1000times above	BLACK
A/S	<10^8~12 ohm/sp	1~2YEAR	1000 times above	BLUE,WHITE,NATURE
COMMON	<10¹³ ohm/sp	1~2YEAR

Carrier tape match with cover tape range of size (mm)

Carrier

Tape

Cover

Tape

5.4

9.3

13.3

21.3

25.5

37.5

49.5

66.5

81.5

Dimension

OUTER DIA.	HUB SIZE	WIDTH DIM.
13inch	4 OR 7inch	8mm~88mm
15inch	4 OR 7inch	8mm~88mm
7inch	2 OR 2-1/2inch	8mm 12mm 16mm
