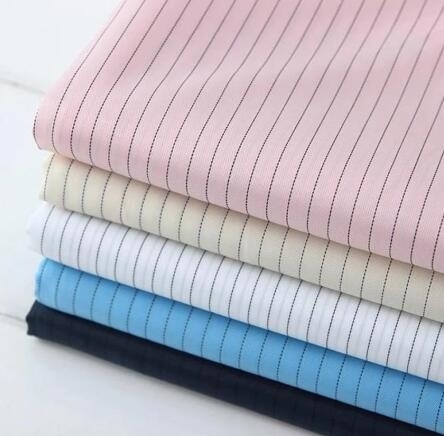

Name: Functional ESD Fabric Dust Proof 99% Plyester 1% Conductive Fabric Stripe 5mm
Brand: SHENZHEN DELIXIN CO.,LTD
SKU: GRID
Price: 0.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ACE DELIXIN

Certification: SGS、ROHS

Model Number: GRID

Payment & Shipping Terms

Minimum Order Quantity: 1500 Meters

Price: USD(0.5-2)/M

Packaging Details: 120-150Meters/Roll

Delivery Time: 5-10work days

Payment Terms: T/T, D/A, D/P, T/T

Supply Ability: 100000Meters

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                esd clothing material, anti static fabric


Material:	Polyester+Conductive Fiber	Size:	5mm Grid/streak 150CM Width
Color:	Multiple Choice	ESD Reading:	10E5-10E9
Style:	Twill	Weight:	108g/m²
Density:	165*80	Feature:	Dustproof,breathable,antistatic
Uasage:	Cleanroom Workwear

Material:	Polyester+Conductive Fiber
Size:	5mm Grid/streak 150CM Width
Color:	Multiple Choice
ESD Reading:	10E5-10E9
Style:	Twill
Weight:	108g/m²
Density:	165*80
Feature:	Dustproof,breathable,antistatic
Uasage:	Cleanroom Workwear

Functional ESD Fabric Dust Proof 99% Plyester 1% Conductive Fabric Stripe 5mm

Functional ESD Fabric Dust Proof 99% Plyester 1% Conductive Fabric Stripe 5mm

Product Description

anti-static garments are made with high quality long fiber polyester material which is excellent in cleanliness, filtration, comfort, durability, hard-adhesive and easy-dressing.

imported conductive fiber assure the excellent anti-static performance of the products.

special polyester long fiber thread with unique sewing technique.

By sophisticated imported laundry equipment, laundered in class 10, 100 clean room can provide the best services for the most stringent requirement clients.

Advanced test instruments and methods with strict quality control system to ensure the high quality of each finished product.

Applies to electronics, micro-electronics, semi-conductor, LCD, pharmaceutical, biotech, constructions, optoelectronic, aerospace.

Technical Parameters

Material	99% Plyester+1% conductive fabric
Conductive fabric Distance	Stripe 5mm
Surface resistance.	1x106-1x108Ohm/sq
Static decay time	<0.17 s.
Washing	30 centigrade water or normal dry clean
Life	Repetitive Washings
Applying cleanroom	10-10000 Class
Fabric electric charge density	≤3uc/m2
Bearing pull	29.4 N
Standard	GB12014-89
CLeanroom available	100-1000 clas
