Highlight:
esd clothing material
, anti static fabric
Dustproof Anti Static Polyester Fabric Electrical Conductive Fabric Durable
Dustproof Anti Static Polyester Fabric Electrical Conductive Fabric Durable
Product Usage:
Suitable for work clothes in the explosive industries such as petroleum, chemical, coal, gas stations, liquefied gas stations, oil tankers, etc., and industries with relatively sensitive static electricity and high cleanliness requirements such as medicine, automobile, precision instruments, microelectronics, food, aerospace, etc. Work clothes
Performance characteristics:
1. Anti-static function This anti-static performance must be durable and efficient, and will not be significantly attenuated by daily washing and friction.
2, the fabric itself does not dust because it is worn in the clean room, so the fabric itself can not be used as a source of clean room dust, which determines that the fabric can only be produced by chemically synthesized long fibers.
3, the fabric should have good dust filter. When the equipment conditions are determined, the improvement of cleanliness depends on the tiny dust generated by the human body in the clothes, so that he can not enter the air through the fabric, and the dust filter rate is sacrificed. At the expense of breathability, looser woven fabrics are not suitable for use in clean rooms. Production of high-grade tooling in flammable and explosive places such as petroleum, chemical, coal mines, and pharmaceutical, electronics, electric power, automobile, sanitation and other industries.
Technical Parameters
| Material |
98% Plyester+2% conductive fabric |
| Conductive fabric Distance |
Strip (5mm,10mm),Grid (2.5mm,5mm,10mm) |
| Surface resistance. |
1x106-1x108Ohm/sq |
| Static decay time |
<0.17 s. |
| Washing |
30 centigrade water or normal dry clean |
| Life |
Repetitive Washings |
| Applying cleanroom |
10-10000 Class |
| Fabric electric charge density |
≤3uc/m2 |
| Bearing pull |
29.4 N |
| Standard |
GB12014-89 |
| CLeanroom available |
100-1000 class |

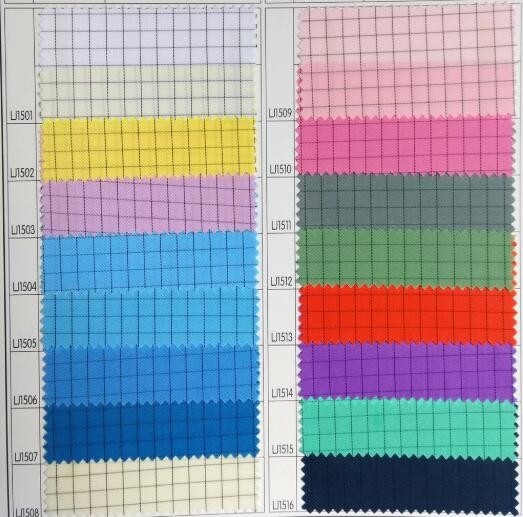

3/2 twill 5mm grid polyester anti-static fabric
2.5mm grid anti-static polyester fabric
