1>. Tester is able to test left and right footwear
simultaneously.
2>. Tester is ready to test for 5 seconds after swiping card
reader.
3>. Software to plot graph or report as specified.
4>. Software is customized according to users requirement.
5>. System to pull operators database from server.
6>. E-mail notification if operator fail test.
7>. Graph and report can be viewed by authorized workstation.
1.1 iDS-610 – ESD Wrist Strap and Shoe Checker
1.2. iDS-700 – EDS DataLogging Software
2. Data Logging System D-Stat 700
D-Stat 700 Wrist Strap/Foot wear Datalogging System
3. Wrist strap and Footwear Station
4. D-Stat 700 Wrist Strap/Footwear
Datalogging System
D-Stat 700 datalogging system is a self-contained and user
friendly system that provides the ultimate means to automate
the test data of the wrist strap and/or footwear.
The basic system consists of :
- Wrist strap and footwear tester
- D-Stat 700 Datalogging
- Ds-Reader
- Ds-Scheduler
- Ds-Reporting
- Ds-Fail Reporting
- Dual Conductor Footplate
- Barcode Reader/Smart Card Reader
- Computer
Advantages
Capture and record real time data-Name, ID No,
Pass or Fail, Time,date,ETC.
1>. Database is easy filtering of data-
Shift,Department,Date,Name,Station,ETC.
2>. Convincing data to show auditor.
3>. Database can be customize.
4>. Various form of reports – Graph and others.
5>. Automated e-mail feed for network system.

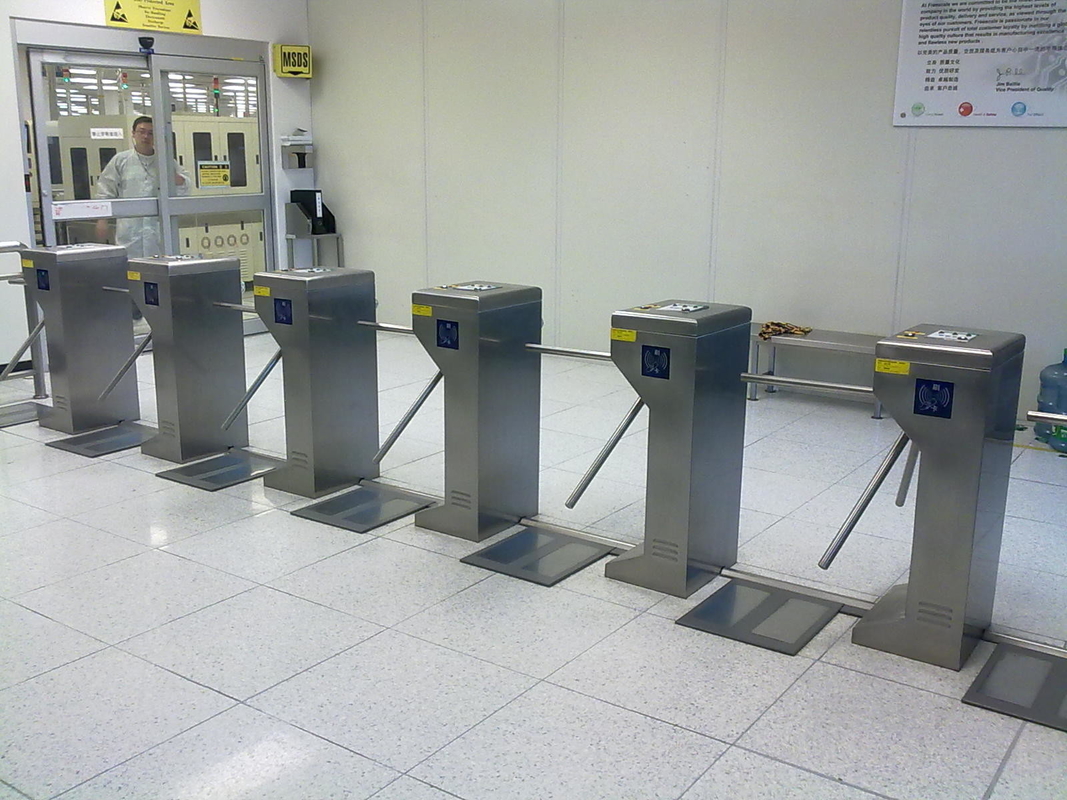

6>. Able to corporate with Gatebarrier tester.
5. DS-Reader
6. Ds_Scheduler
7. D-Stat 700
8. Main Screen
9. Employee
10. Bar Chart
11. Report
12, Attendance
13. Fail Report
14. DS-Fail Reporting
15. Edit Action /Remarks
16. Data-Logging Network Topology With iDS-600
