Highlight:
Rustproof Safe Entry Turnstile
, Safe Entry Turnstile 120 Rotating
, Rustproof train station turnstiles

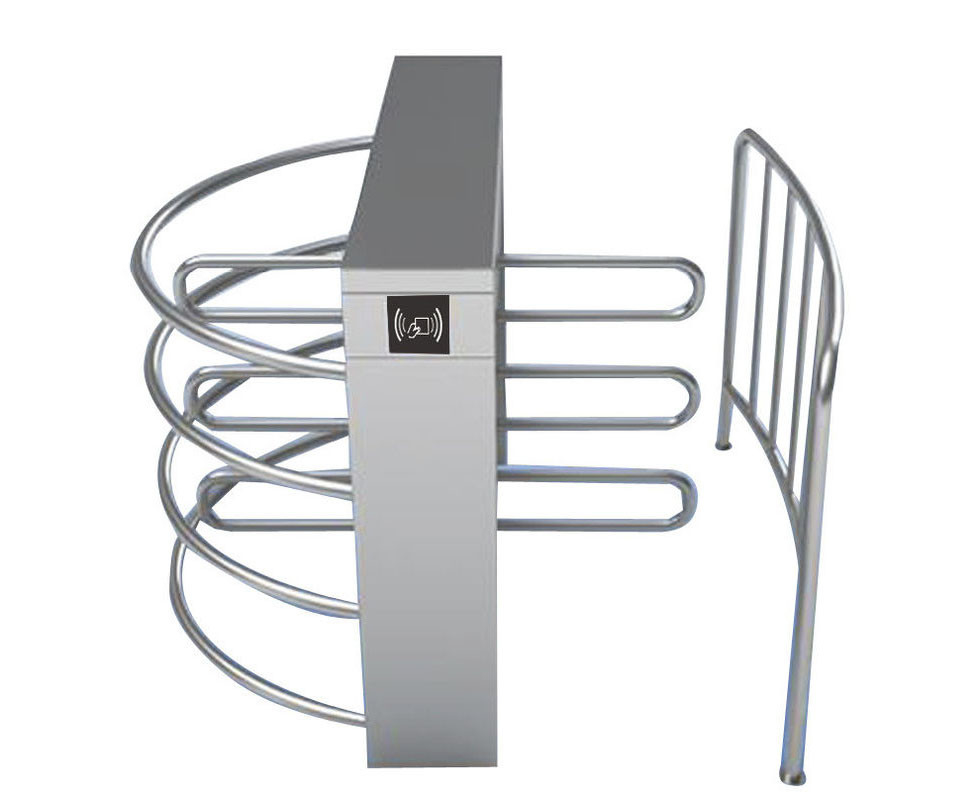

Rustproof Safe Entry Turnstile 120 Rotating For Railway Train Station
High Durability Security Turnstile 120°Rotating Rustproof For Railway Station
Product Classification
Model:DLX-1000
| 1 |
Power |
AC220C±20V,50HZ; |
| 2 |
Machine core |
Semi Automatic |
| 3 |
Operating Temperature |
-40℃-70℃ |
| 4 |
Relative Humidity |
≤95%, No Condensation |
| 5 |
Passage Width |
≤600mm |
| 6 |
Passing Speed |
40persons/min |
| 7 |
Motor |
no motor ,Semiautomatic Mechanism, solenoid and electromagnet mechanism, with shock absorber |
| 8 |
Input Connection |
+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |
| 9 |
Communication Connection |
without RS485 Communication |
| 10 |
Material |
Stainless steel 304,thickness is no less than 1.5mm |
| 11 |
Communication Distance |
＜1200M |
| 12 |
Running life |
5--8 Million(Continuous Opening and Closing Operation) |
| 13 |
Protect level |
IP54 |
| 14 |
Size |
1630*1450*2300mm ,Many size can be choice or custom made as demand |
| 15 |
Colour |
Stainless Steel Brushed / Powder Coating(Optional) |
| 16 |
Operation Place |
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
|
|
|
Product Description :
The full body is made of 304# stainless steel; consist of three bars, mechanism, electric circuit, electromagnetic, hydraulic damper, led lamp and so on. It is pedestrian access the upgrading product of tripod turnstile. With standard fire interface, arm can be free rotation by force for evacuation even power is not cut offwhen fire alarm triggered.
Anti-passback, with hydraulic damper, low impact sound and high durability:
Product introduction
Structure: the entire product shape plate 304 stainless steel plate, stamping, rustproof, durable, the equipment is simple to use, no maintenance.
◇ external dimensions: 1630X1450X2300
◇ brake lever length: 600(mm)
◇ weight: 200KG
◇ brake lever steering: one-way two-way
◇ working environment: indoor and outdoor (preferably with awning)
Features :
1. High Security, anti-crawling, anti-climbing, no need guard for the gate.
2. Free rotation by force when power off. Locked when power on.
3. Arm locked until a valid signal is given.
Applicable place:
◆ high security occasions: prisons, military places, etc.
◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
◆ transportation station: bus station, railway station, subway station, airport, etc.
