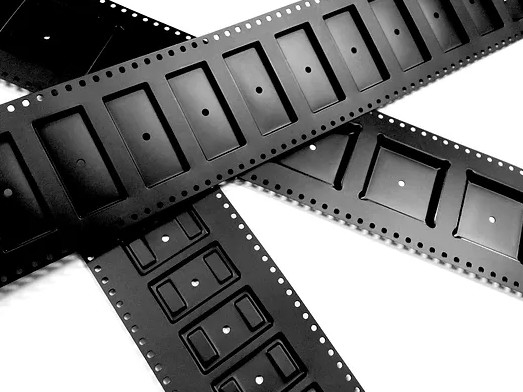

Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm
Electronic Components SMT Carrier Tape With Reel Cover Tape 24mm 32mm 44mm
Carrier tape
8-104mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.
Color:black/transparent
There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.
We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.
SMD Embossed Carrier Tapes and Reels
- Embossed carrier tapes for IC chips and other devices
- Take-up Reel made from high impact injection molded materials
- Reels available in normal, blue antistatic and conductive black
- Width : 8, 12, 16, 24, 44, 56, 72 and 88 mm
Cover tape
PG-DLX608 PSA COVER TAPE SPECIFICATION
PG-A608 PSA Cover Tape is excellent tape. It can paste PS,PC,PET Carrier Tape. It is steady property and suit for SMT component package material.
Base material:PET FILM
Adhesive agent: activity adhesive agent.
| Item |
Specification data |
Remark |
|
Visual
Transparent
|
Brown
Visible Light 109-11
PG-DLX608 V.L.69-70%(Conductive)
|
|
| Thickness |
PG-DLX608 0.056mm±0.01mm |
ASTM D-374 |
| Surface resistance |
One side S.R VALUE 103-5Ω/Square
T=25℃ RH=65%
|
ASTM D-257 |
| Extensile strength |
MD/22.4
TD/25.9
|
ASTM D-882 |
| Extensibility % |
MD/147
TD/120
|
ASTM D-882 |
| POS |
Refer to attachment 一 |
EIA-481 |
| Aging test on POS |
Refer to attachment二 |
EIA-481 |
| Length |
Standard length: Every roll200+3M:5.4 mm -97.5 mm
500+3M:9.3 mm -97.5 mm
|
|
| Width |
5.4 mm -97.5 mm |
|
| Guarantee time |
One year after get tape |
|
Plastic reel
Reel hub size: 2, 4,7 inch
Reel Outer DIM..7 ,13,14,15,20,22,24,26 inch
Reel color: black, blue, white, Nature
Reel width 8-200mm
Reel material: paper, plastic
Reel surface resistance: Conductive style below 10E6 OHM/SQ
Antistatic style 10E6 -10E10E11 OHM/SQ
Common style Above 10E11 OHM/SQ
Reel storage time: 1-2 years
friction times: 1000 times
