Highlight:
                                                                                                                                                                                                                                                full height turnstile gate, full high turnstile, Access Control Security Turnstile


Material:	304Stainless Steel	Machine Core:	Semi Automatic
Size:	L1630W1450H2300mm	Communication Distance:	＜1200M
Traffic Speed:	40people/min	Work Environment:	Indoor And Outdoor

Material:	304Stainless Steel
Machine Core:	Semi Automatic
Size:	L1630W1450H2300mm
Communication Distance:	＜1200M
Traffic Speed:	40people/min
Work Environment:	Indoor And Outdoor

Access Control Security Turnstile

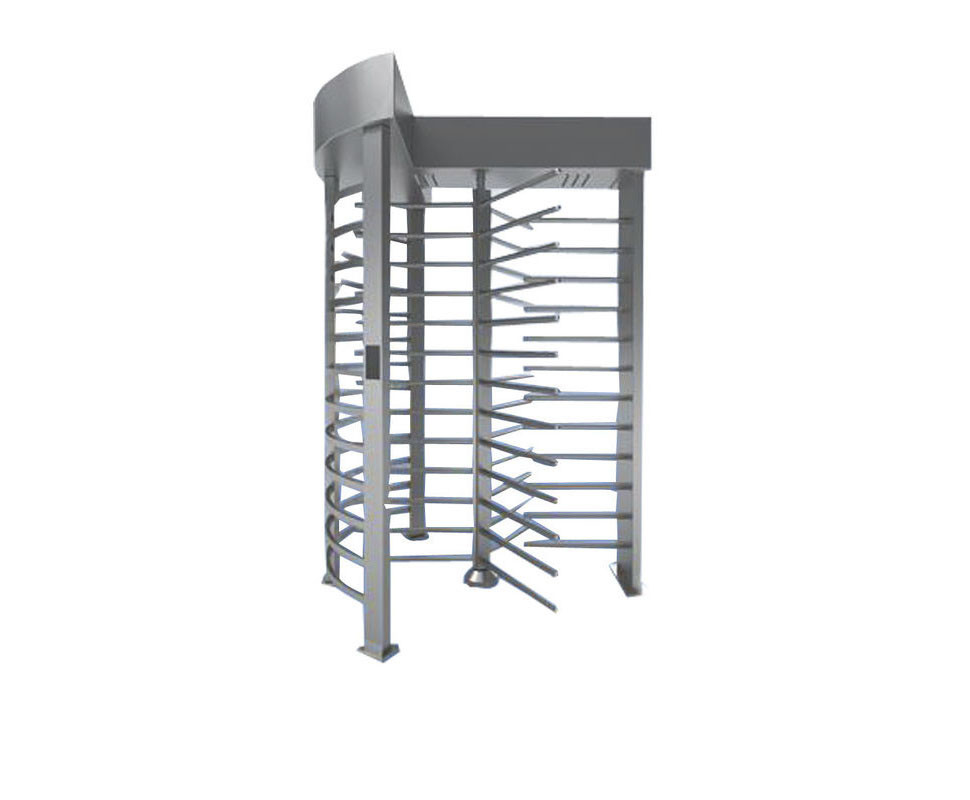

RFID Reader Access Control Turnstile Full Height 304 Stainless Steel Material

Product Classification

Model:DLX-501

1	Power	AC220C±20V,50HZ;
2	Machine core	Semi Automatic
3	Operating Temperature	-40℃-70℃
4	Relative Humidity	≤95%, No Condensation
5	Passage Width	≤600mm
6	Passing Speed	40persons/min
7	Motor	no motor ,Semiautomatic Mechanism, solenoid and electromagnet mechanism, with shock absorber
8	Input Connection	+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
9	Communication Connection	without RS485 Communication
10	Material	Stainless steel 304,thickness is no less than 1.5mm
11	Communication Distance	＜1200M
11	Communication Distance	＜1200M
12	Running life	5--8 Million(Continuous Opening and Closing Operation)
13	Protect level	IP54
14	Size	163014502300mm ,Many size can be choice or custom made as demand
15	Colour	Stainless Steel Brushed / Powder Coating(Optional)
16	Operation Place	Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control

Product introduction

Structure: the entire product shape plate 304 stainless steel plate, stamping, rustproof, durable, the equipment is simple to use, no maintenance.

◇ external dimensions: 1630X1450X2300

◇ brake lever length: 600(mm)

◇ weight: 180KG

◇ brake lever steering: one-way two-way

◇ working environment: indoor and outdoor (preferably with awning)

Features :

1. High Security, anti-crawling, anti-climbing, no need guard for the gate.

2. Free rotation by force when power off. Locked when power on.

3. Arm locked until a valid signal is given.

4. Reset automatically, after authorizer pass through, arm back to zero position and locked.

5. Memory can be set, swipe cards several times for group pass.

6. One way or two way controlled.

7. Pass right will be cancelled if authorizer does not pass within preset time.

8. With standard inputs and outputs, can be integrated with different access control devices.

9. Control by PC.

Applicable place:

◆ high security occasions: prisons, military places, etc.

◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.

◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.

◆ leisure and entertainment places: parks, scenic spots, amusement parks, etc.

◆ transportation station: bus station, railway station, subway station, airport, etc.
