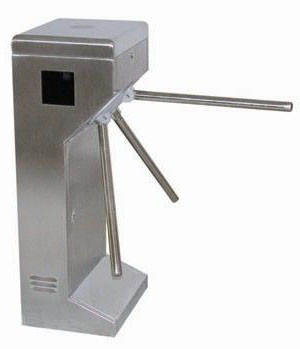

Fast Speed Turnstile Security Systems Finger Print Or ID RFID Card Reader
Fast Speed Turnstile Security Systems Finger Print Or ID RFID Card Reader
Product Classification
Model:DLX-213
Product Presentation
1. Structure: the entire product appearance plate adopts 304 stainless steel plate stamping forming, rustproof, durable,
2. Dimensions: Length1000xWidth280× height 1000 (mm)
3. Weight:40kg.
4. Brake lever length: 600(mm)
5. Brake lever steering: one-way and two-way (optional)
6. Working environment: indoor and outdoor(It's better to have a shelter outside)
1. Fault detection and alarm functions, easy to use and maintenance
2. The running status can be programmed and controlled with the built-in keyboard on the main board
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Synchronization functions (for dual gate equipments)
Extend the functionality
◆ anti-collision function: the gate is hit by external force in the closed state, can choose not to hit the brake lever after collision or can hit the brake lever after automatic return function.
Product parameters
◆ power supply :AC220V±20%V, 50Hz;
◆ operating environment temperature :-40℃ -70 ℃;
◆ relative humidity: less than 95%, no condensation;
◆ traffic speed: 40 people/min (IC card);
◆ dc motor: 20W/24V;
To adapt to the workplace
◆ office space: business building, government offices, etc.
◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
◆ leisure and entertainment places: parks, scenic spots, amusement parks, etc
◆ transportation station: bus station, railway station, subway station, airport, etc.
