1.1 iDS-610 – ESD Wrist Strap and Shoe Checker
1.2. iDS-700 – EDS DataLogging Software
1.3. iDS-611x – Compact Economical Turnstile
2. ESD Shoe and Wrist Strap Tester iDS-610
2.1. Small and compact size 130mm X 160mm X 60mm
2.2 Comes with 2x20 LCD
2.3. Simultaneous Dual-foot and Wrist Strap testing
2.4. Digital Setting and Calibration
2.5. Easy Verification
2.6. Future Expansion for DataLogging and Other Control
2.7. RS-232 Output
3. Steps to Use iDS-610
3.1 Step on the Footplate firmly
3.2 Plug in the Wrist Strap Jack (if required)
3.3 Press the Steel Button on the ESD Tester to initiate testing
3.4 If Result pass, the Door will opens or the
Turnstile will start to rotate to allow access
4. Connecting iDS-610 to Entrance Doors
4.1 Connection to Door
4.2 Key Benefit
Easy to Install Economical
4.3 Disadvantage
Many operators can enter at the same time.
5. Enhancement to DS-600 Door Access System
5.1 Sensors and Siren to be installed at entrances to ensure ONLY the person who
is verified of ESD compliant is allowed to enter production floor/ESD Protected Area
In order to provide more ESD security for the Production Floor/ESD Protected Area
6.Connecting DS-600 to Gate Barrier
6.1 Advantages
- Go-No-Go System
- Minimum Paper Work
- Minimum Maintenance
6.2 Disadvantages
- Higher Cost
- Takes up space

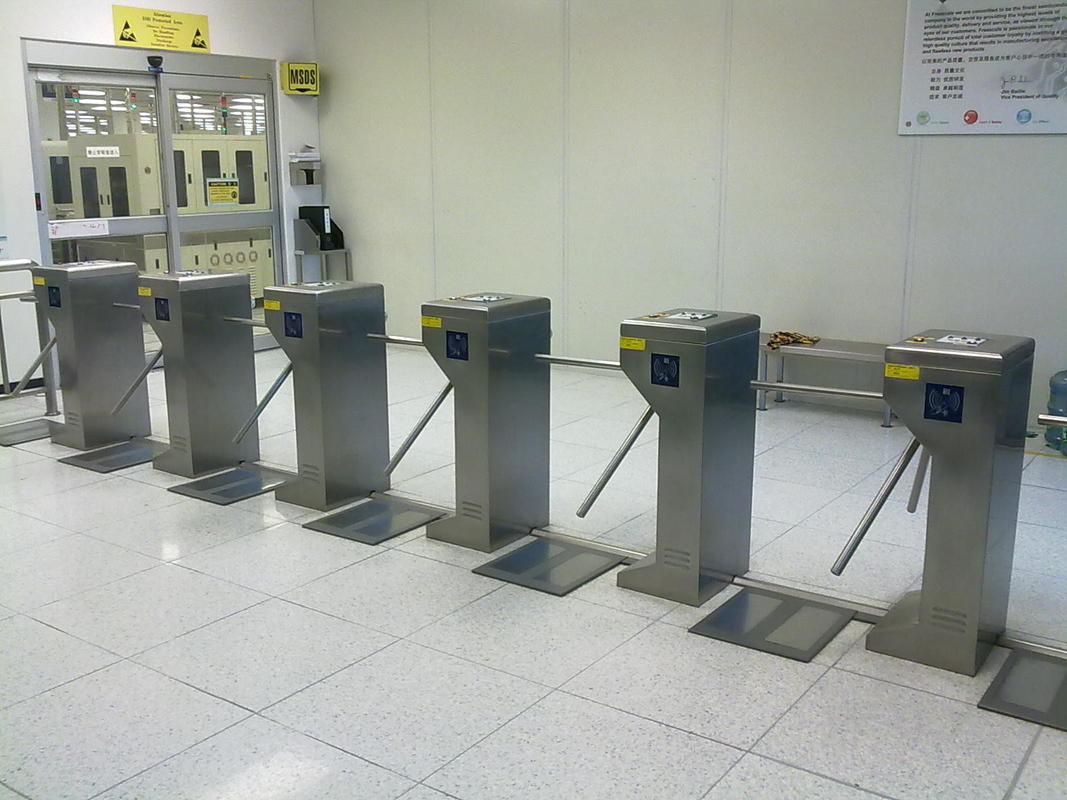

7. Various Types of ESD Gate Barrier
7.1 Flap Gate
Futuristic and very presentable to customer
Impressive
7.2 FlapGate with Dual Flap
7.3 Standard Large Turnstile
7.4 Standard Large Turnstile Dimension
7.5 Compact Turnstile
8.Implementation
9. Wall Mounted Units
9.1 Self-contained ESD System with Computer and Web-based Reporting
*** Does not require additional
Computer/Server
9.2 Comes with OMNI Barcode Scanner
9.3 2.8” LCD
9.4 Mounting Panel for Testing
9.5 Integrated to iDS-610 ESD Tester
1> 100kOhm to 150MOhm Testing range
2> Dual Footplate
3> Wrist Strap
